Cristec

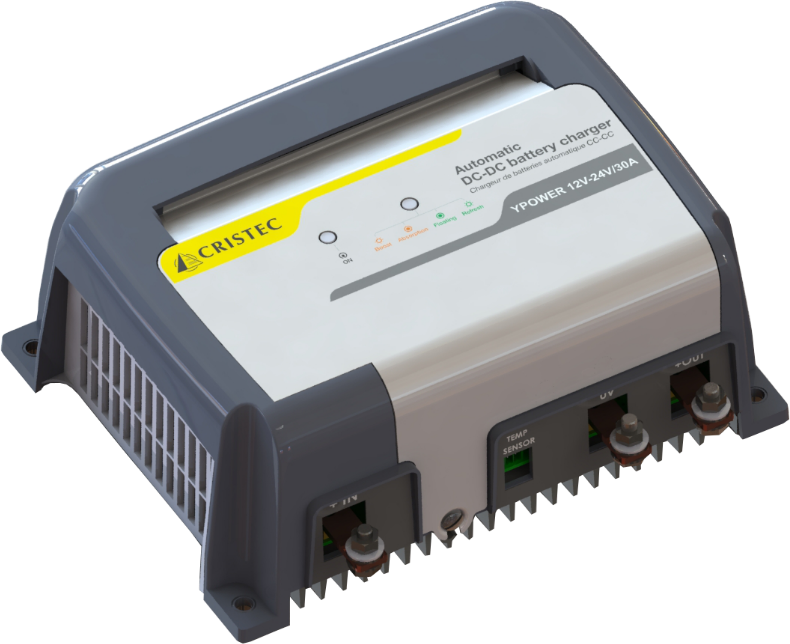

DC-DC Converter/Battery Charger (Lithium function)

DC-DC Converter/Battery Charger (Lithium function)

€684,00 EUR
€684,00 EUR
Sale Sold out
Tax Included for all EU countries except for UK.
Shipping calculated at checkout.

YPOWER DC-DC chargers-converters have been designed to charge a 12, 24, 36 or 48V battery bank from a 12, 24, 36 or 48V network.
It can be connected to another battery, alternator, or even a hydrogen fuel cell.

UPDATE:

Delivery times:

EU - United Kingdom: 5 days (express)

My personal comment
These DC/DC converters deliver more power then comparable products on the market (570W up to 860W nominal power). This makes it interesting for high power applications like electric propulsion, off-grid etc...
Cristec's manufacturing quality is exceptionally good. The PCB is protected by water-repellent varnish, making these devices extremely suitable for marine applications. What I personally really like are the advanced configuration options. You can set it as a constant voltage source, but also as a battery charger for almost every battery chemistry (AGM, LiFePO4...) For the advanced users even floating voltage, output current limitation and many more settings can be adjusted. Please feel free to contact me if you have any questions about this product.

FEATURES

Thanks to their large scale of input and output voltage, they can be configured as a simple converter or as a battery charger. In this case, the charging curve delivered is the same as the one of a smart charger :
- 5 steps
- all types of batteries (wet & sealed Lead, Calcium Lead, gel, AGM, Lithium, etc.)


INPUT/OUTPUT CHARACTERISTICS

• Input voltage : 12 or 24 or 36 or 48VDC (from 10 to 64VDC or
from 10 to 45VDC according to models)
• Output voltage : 12 or 24 or 36 or 48VDC
• Nominal power : from 570 to 860W (depending on model)

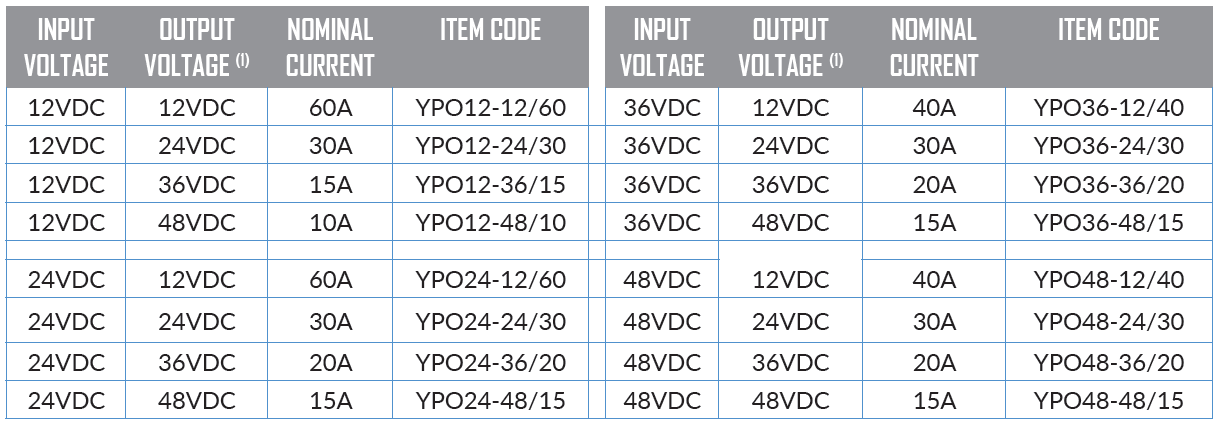

• Max. output current : from 10 to 60A at nominal voltage (depending on model, please check the table in the product images)
• Isolation Input/Output : no as 0V is common
• 5-step charging curve : Boost, Absorption, Floating, Refresh & Reboost
• Battery type selection through push-button or communication
• Efficiency : 96% typical
• Ripple : < 2% (at nominal conditions)
• Electronic limitation of the input current
• Remote control : serial CAN-BUS interface

USER MANUAL
